Profile Guided Optimization

Profile Guided Optimization (PGO) is a compiler feature that uses runtime statistics to make your code run faster, resulting in small performance improvements for your Rust applications.

To use PGO, we first create an instrumented build that collects runtime statistics, then build the final optimized version using those statistics.

Locally Testing PGO

Before enabling PGO in CI, you should test it locally to ensure it provides actual performance benefits.

Installation

Install globally (one-time setup):

cargo install cargo-pgo
rustup component add llvm-tools-preview

Verify that cargo pgo is installed correctly:

cargo pgo info

Testing Workflow

The testing process involves three steps: baseline measurement, profiling collection, and optimized build comparison.

1. Collect Profiling Data

Run an instrumented benchmark to collect profiling data:

cd src
cargo pgo instrument test -- --bench my_benchmark --features pgo

This may also run the regular tests.

2. Run Baseline Benchmark

Establish a performance baseline without PGO:

cd src

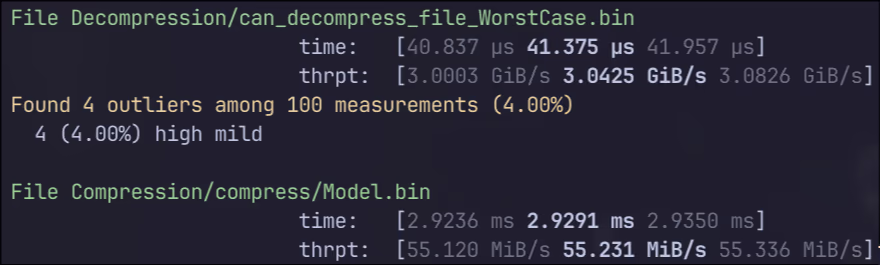

cargo bench

3. Build with PGO Optimization

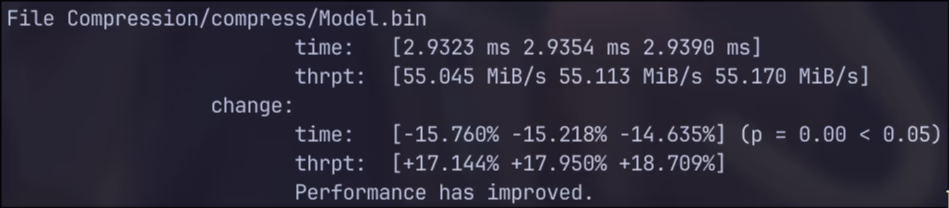

Create the PGO-optimized build and compare results:

cd src
cargo pgo optimize bench

Configuring Benchmarks for PGO

PGO works by collecting statistics from representative workloads during benchmark execution. The key is ensuring your benchmarks reflect realistic usage patterns.

Benchmark Configuration

Method 1: Exclude Specific Benchmarks

Update your benchmark code to exclude unrealistic workloads from PGO runs using conditional compilation:

fn criterion_benchmark(c: &mut Criterion) {
    // Excluded from PGO.
    #[cfg(not(feature = "pgo"))]
    {
        bench_create_dict(c);
    }
}

In this configuration you run your regular benchmarks for PGO, excluding ones that run on unrealistic data.

Method 2: Separate PGO Code

Alternatively, separate code entirely for PGO data collection, working on real data:

fn criterion_benchmark(c: &mut Criterion) {
    // Excluded from PGO.
    #[cfg(not(feature = "pgo"))]
    {
        bench_estimate(c);
        bench_decompress(c);
        bench_compress_file(c);
        bench_create_dict(c);
    }

    // Only runs during PGO data collection.
    #[cfg(feature = "pgo")]
    {
        generate_pgo_data();
    }
}

This gives you more control over PGO data collection: use custom data, exclude unrealistic cases, or test multiple components together.

Integrate with Non-Template Projects

Adding PGO support to existing Rust projects requires coordinated changes across build configuration and source code.

Environment Variable Setup

Add the PGO environment variable to your GitHub Actions workflow:

env:
  build-with-pgo: true  # Set to true to enable PGO builds

Build Matrix Configuration

Modify your build matrix to include the use-pgo parameter and call the GitHub action:

strategy:
  matrix:
    include:
      - os: ubuntu-latest
        target: x86_64-unknown-linux-gnu
        use-pgo: true
        use-cross: false
      - os: windows-latest
        target: x86_64-pc-windows-msvc
        use-pgo: true
        use-cross: false

- name: Build C Libraries and Run Tests
  uses: Reloaded-Project/devops-rust-lightweight-binary@v1
  with:
    crate-name: ${{ github.event.repository.name }}
    target: ${{ matrix.target }}
    use-pgo: ${{ matrix.use-pgo && env.build-with-pgo }}
    use-cross: ${{ matrix.use-cross }}
    features: "c-exports"
    build-library: true

Adding PGO to Cargo.toml

Add the PGO feature to your Cargo.toml:

[features]
pgo = []

Adding Benchmarks

If you don't already have benchmarks, add them to your project. See the Configuring Benchmarks for PGO section for details on setting up benchmarks with PGO support.
